6.5-INCH · 2-WAY

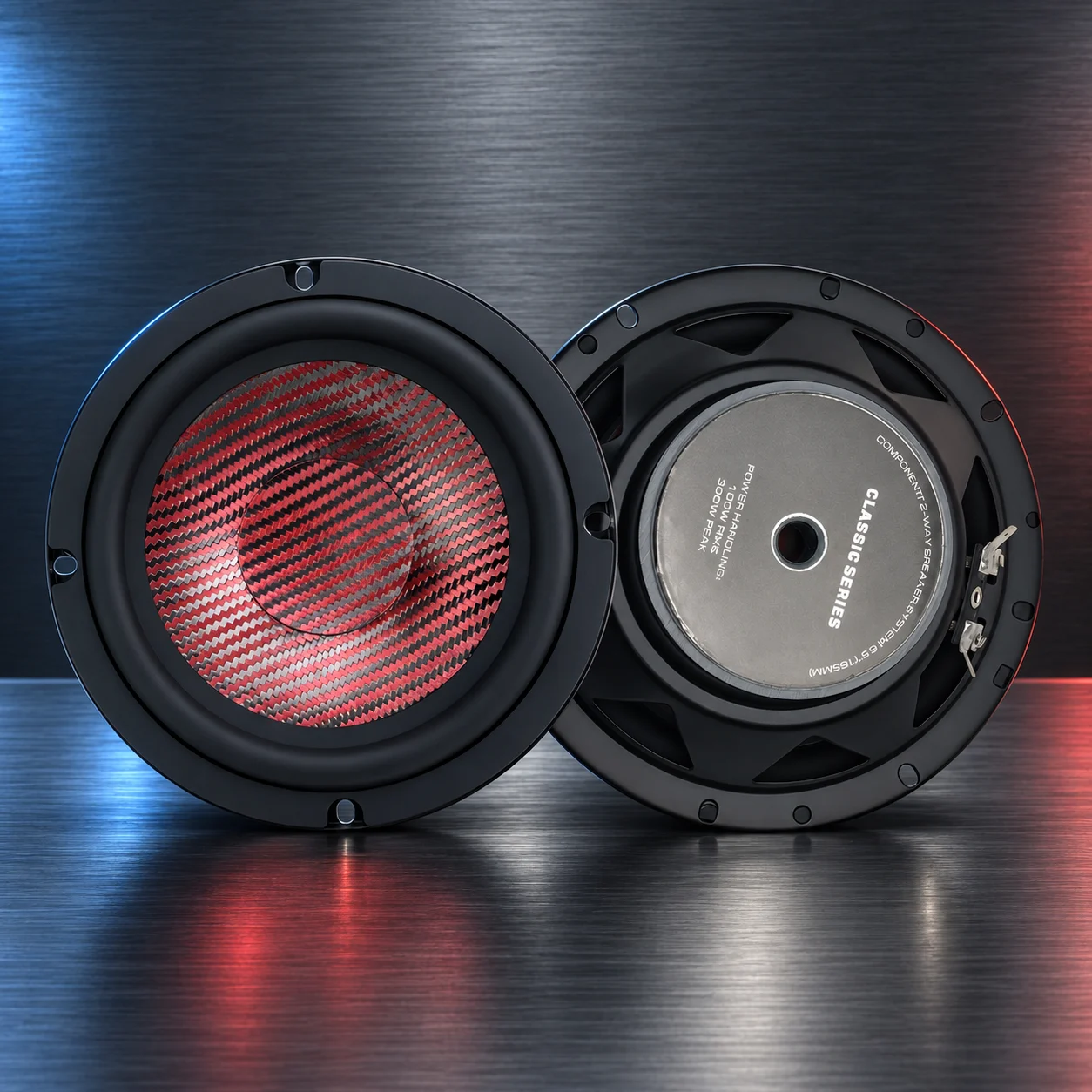

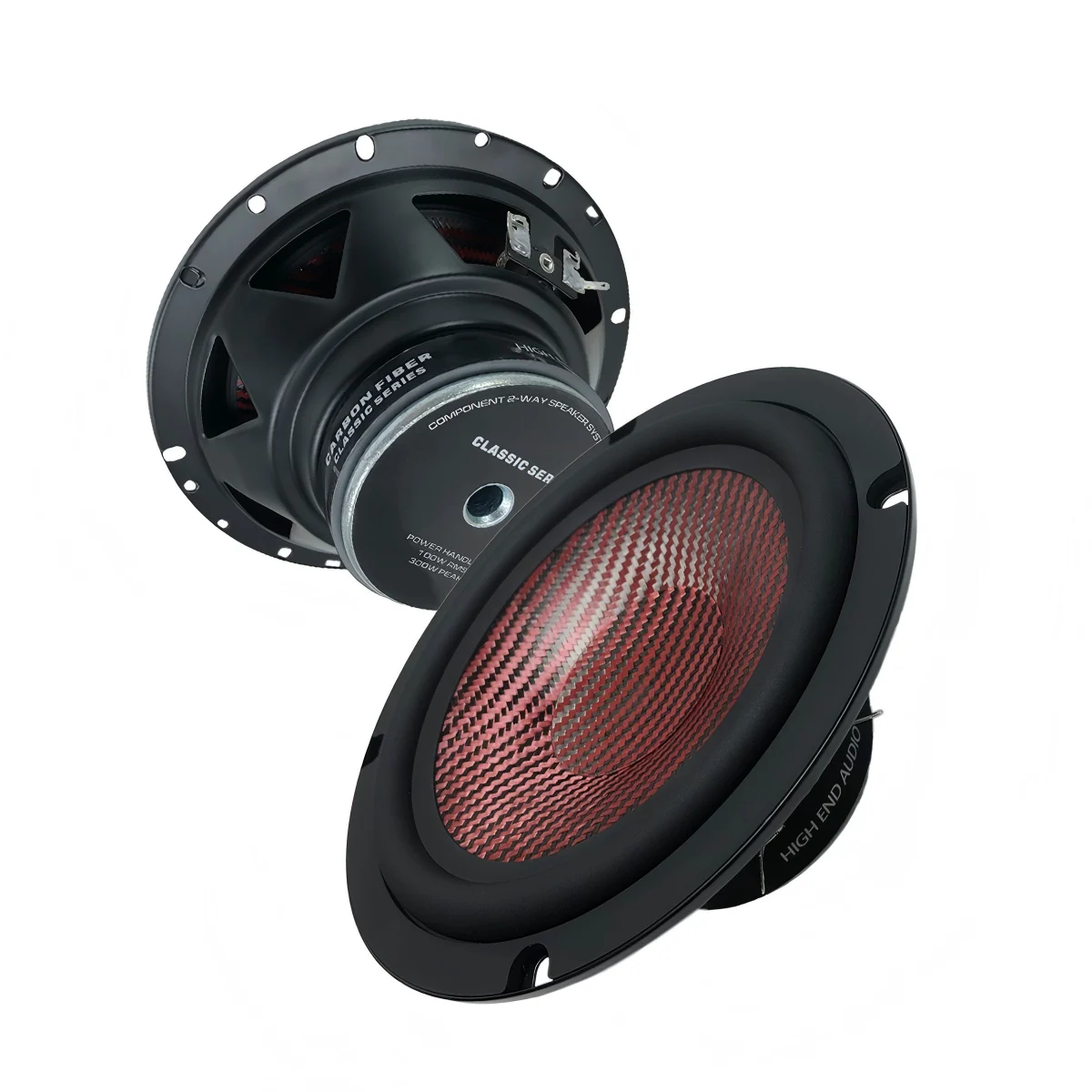

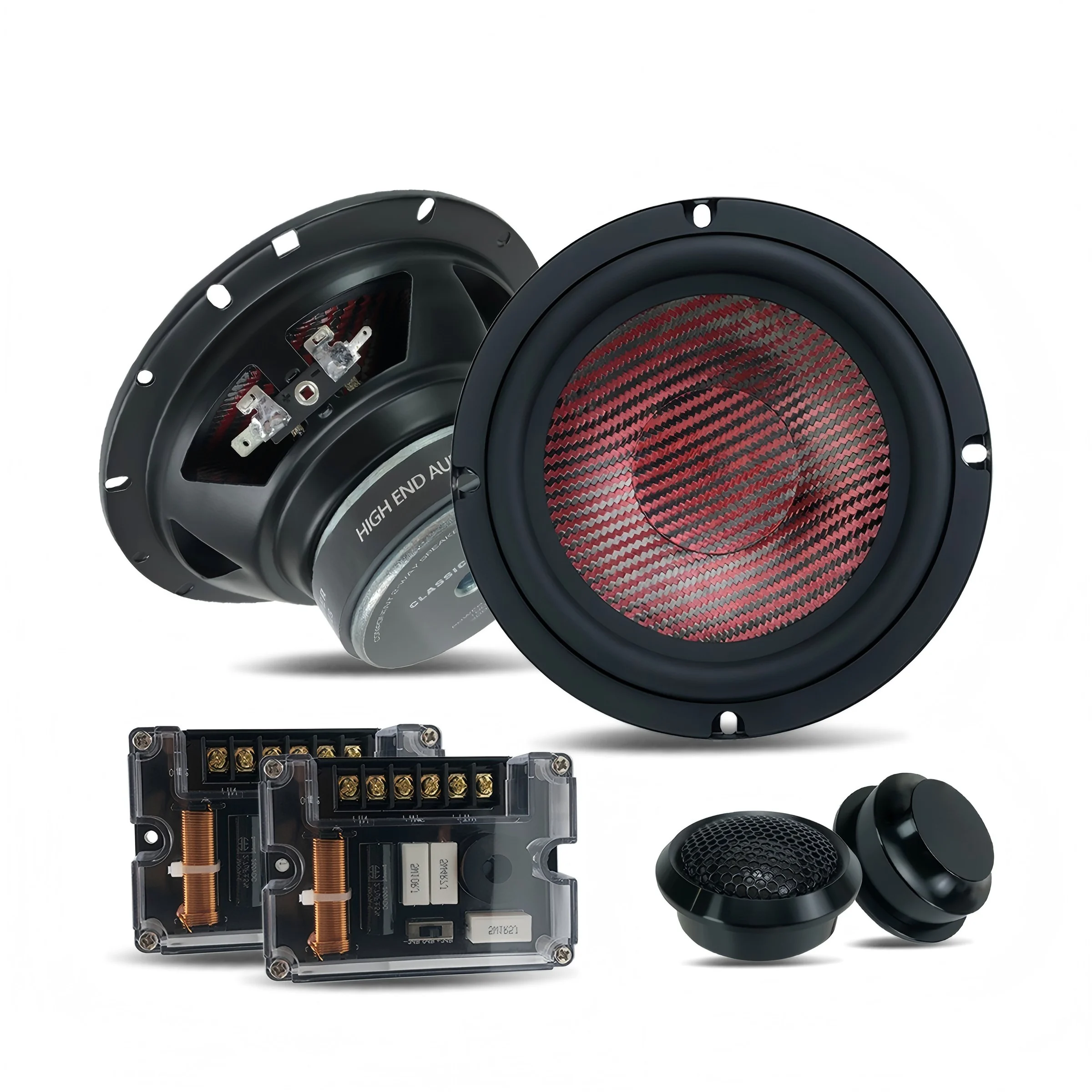

ZM-C65CR

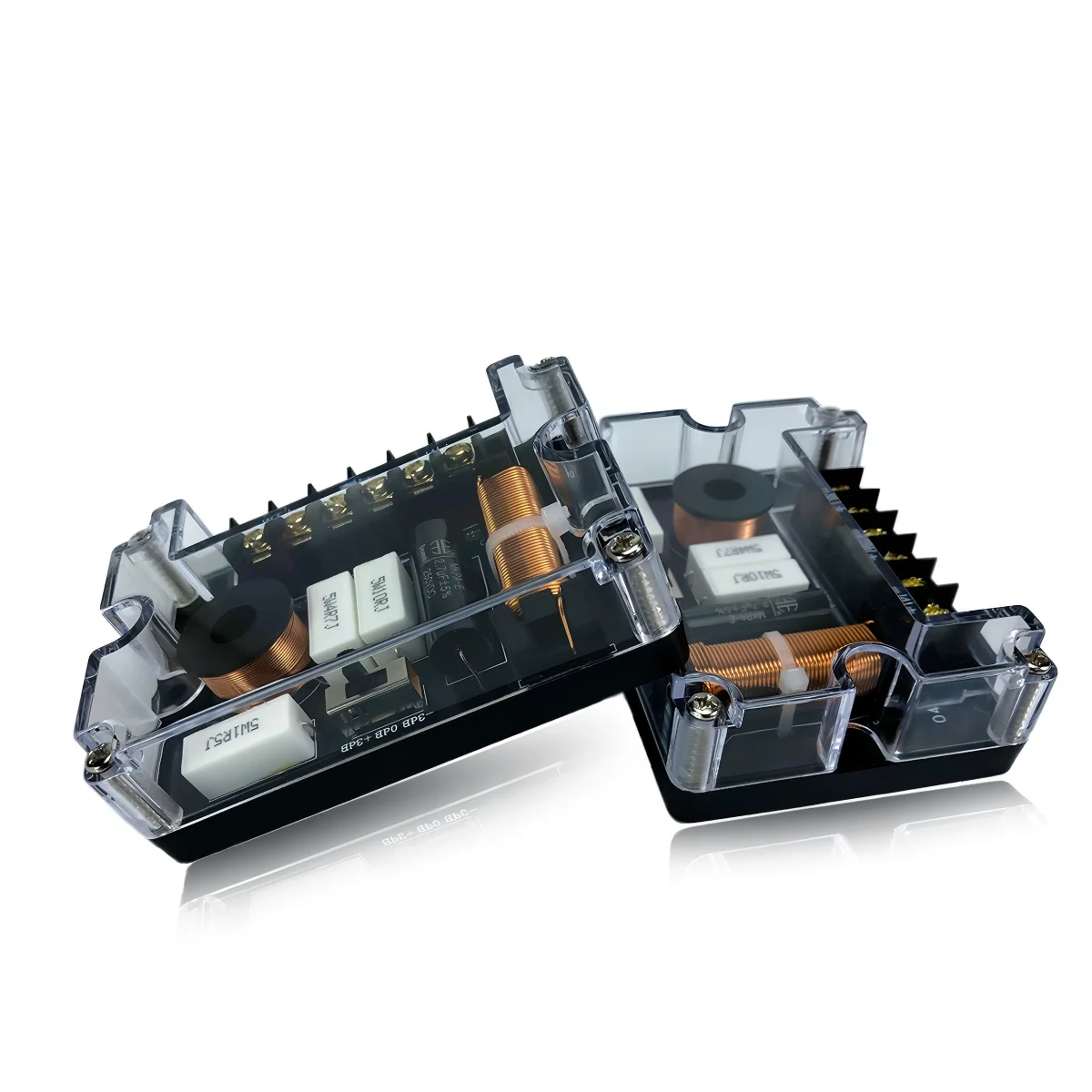

Carbon-fiber woofer, separate silk-diaphragm tweeter and passive crossover for a complete component system.
CARBON-FIBER COMPONENT SPEAKER SERIES
Two Formats.
One Coordinated Product Family.

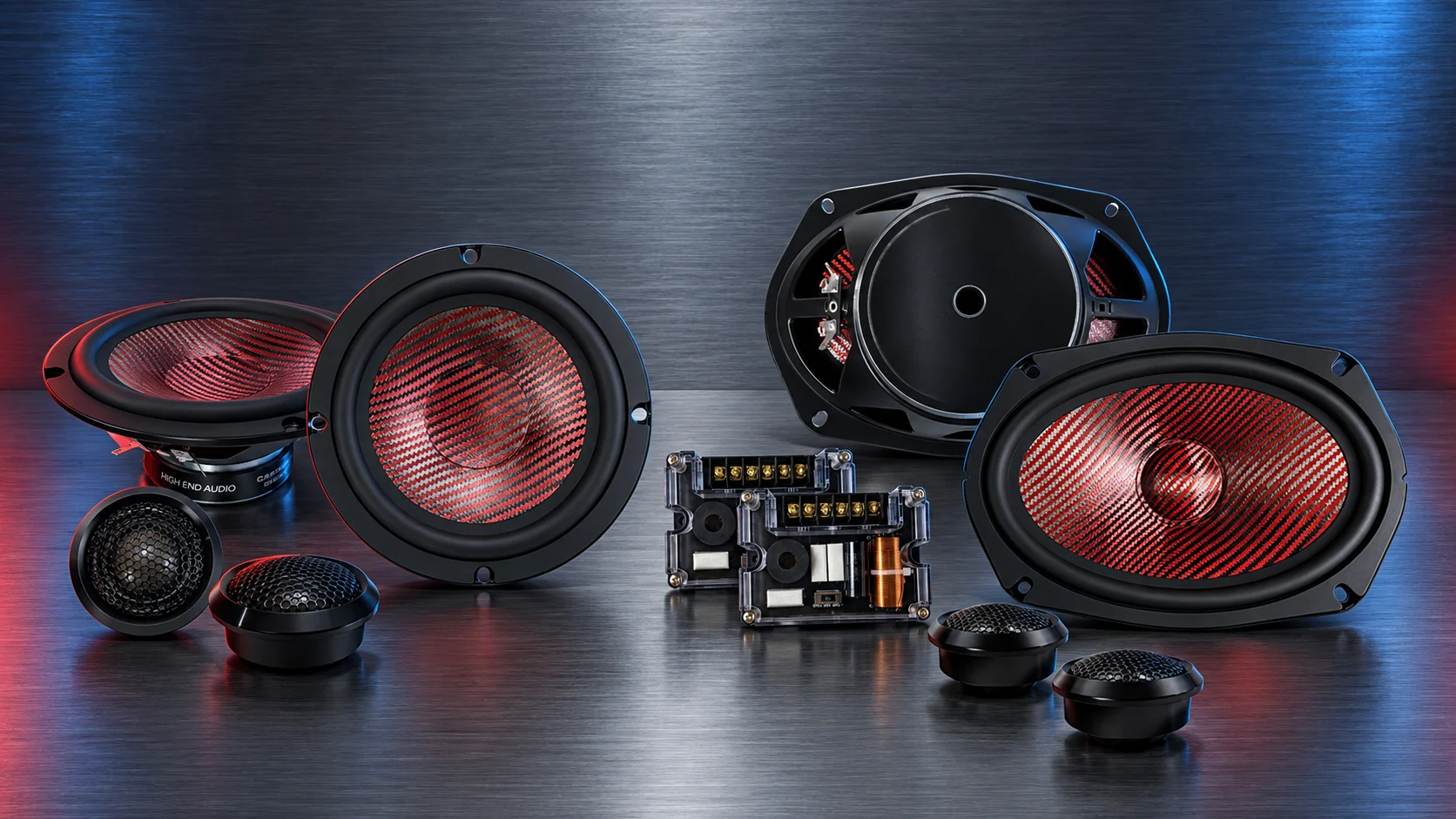

ZM-C65CR + ZM-C69CR
Choose a round 6.5-inch or oval 6×9-inch 2-way component system for your market while keeping a consistent carbon-fiber visual identity.
PRODUCT CONFIGURATIONS
Review Each Format as a Complete System.
The two models stay on one series page while their product images and specifications remain separate.

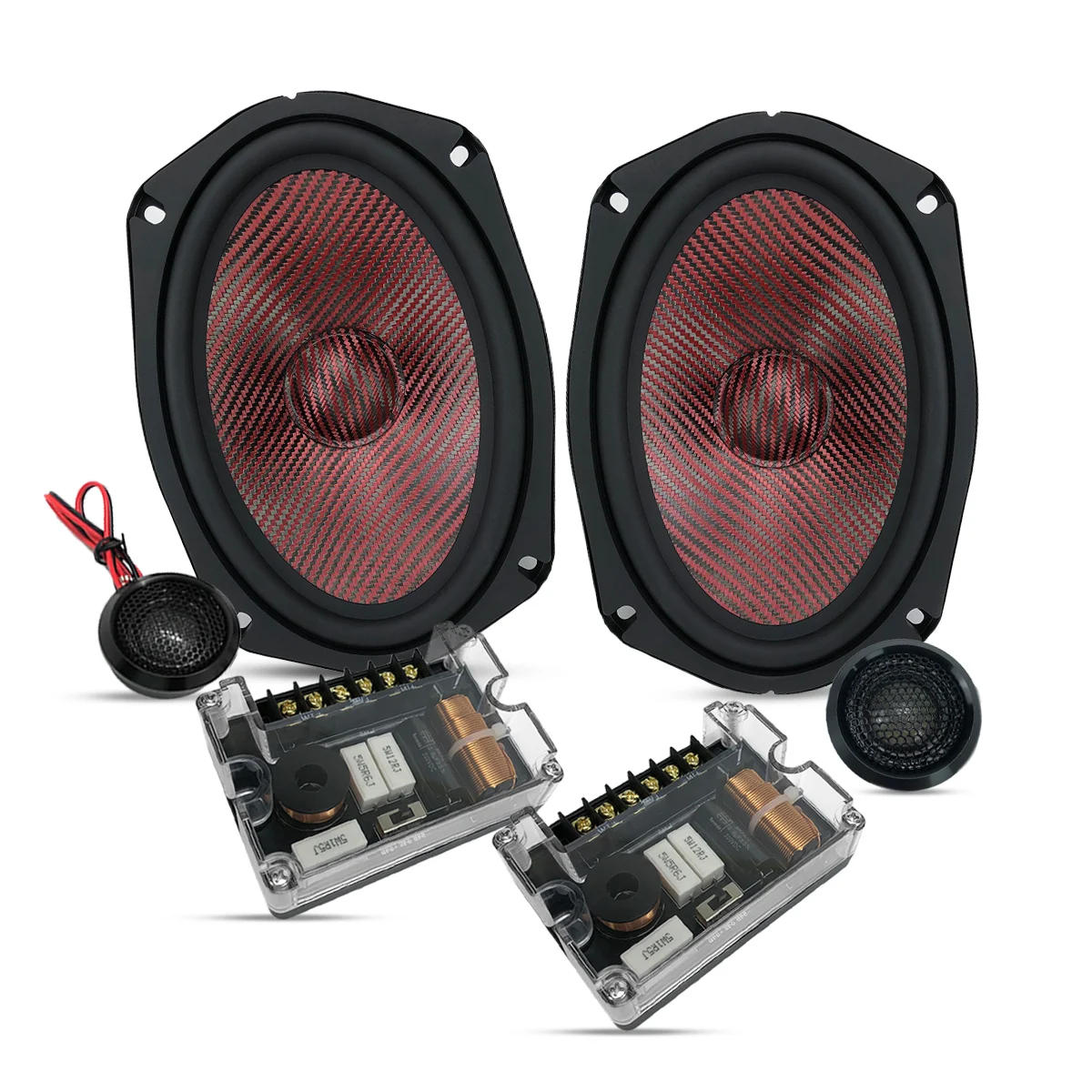

6×9-INCH · 2-WAY

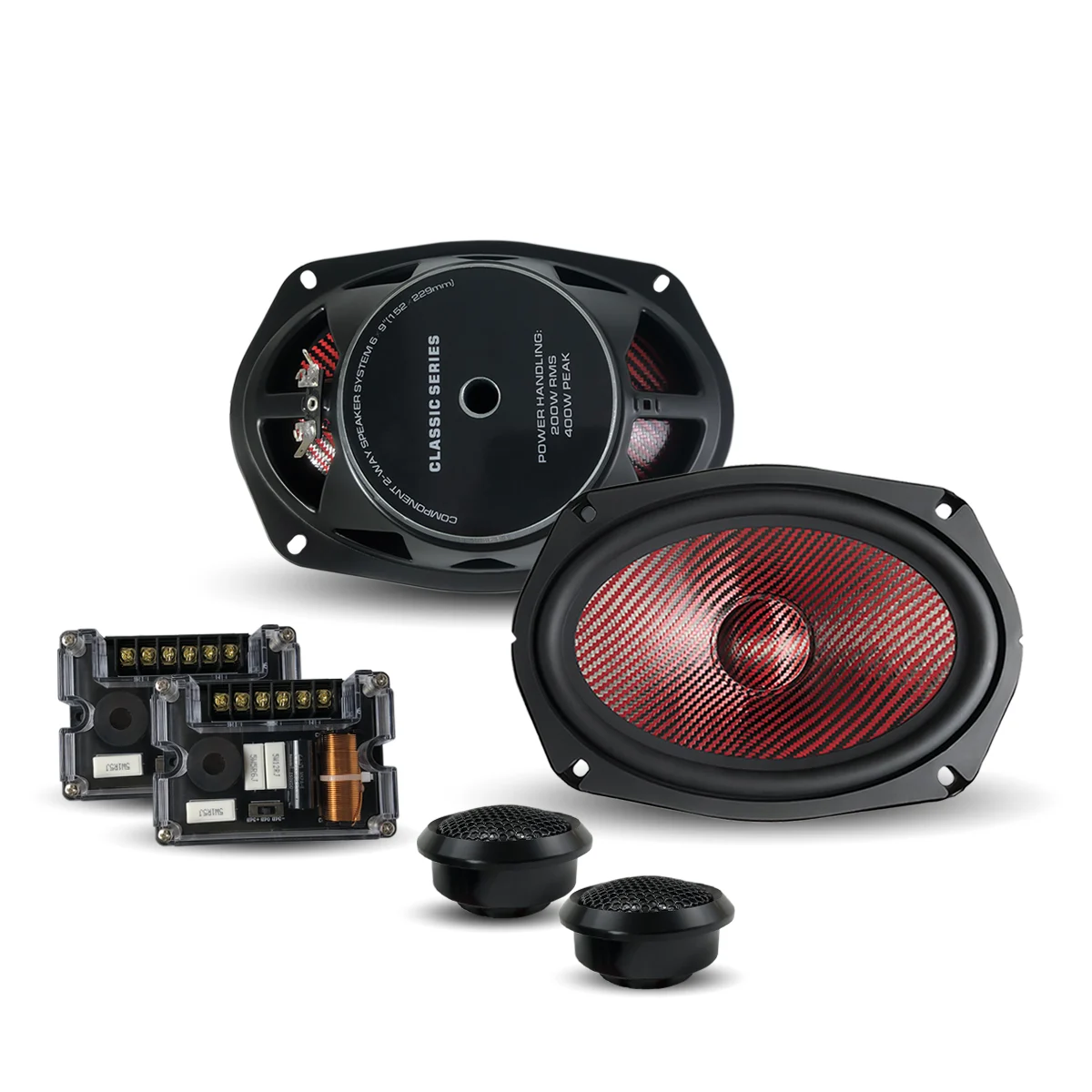

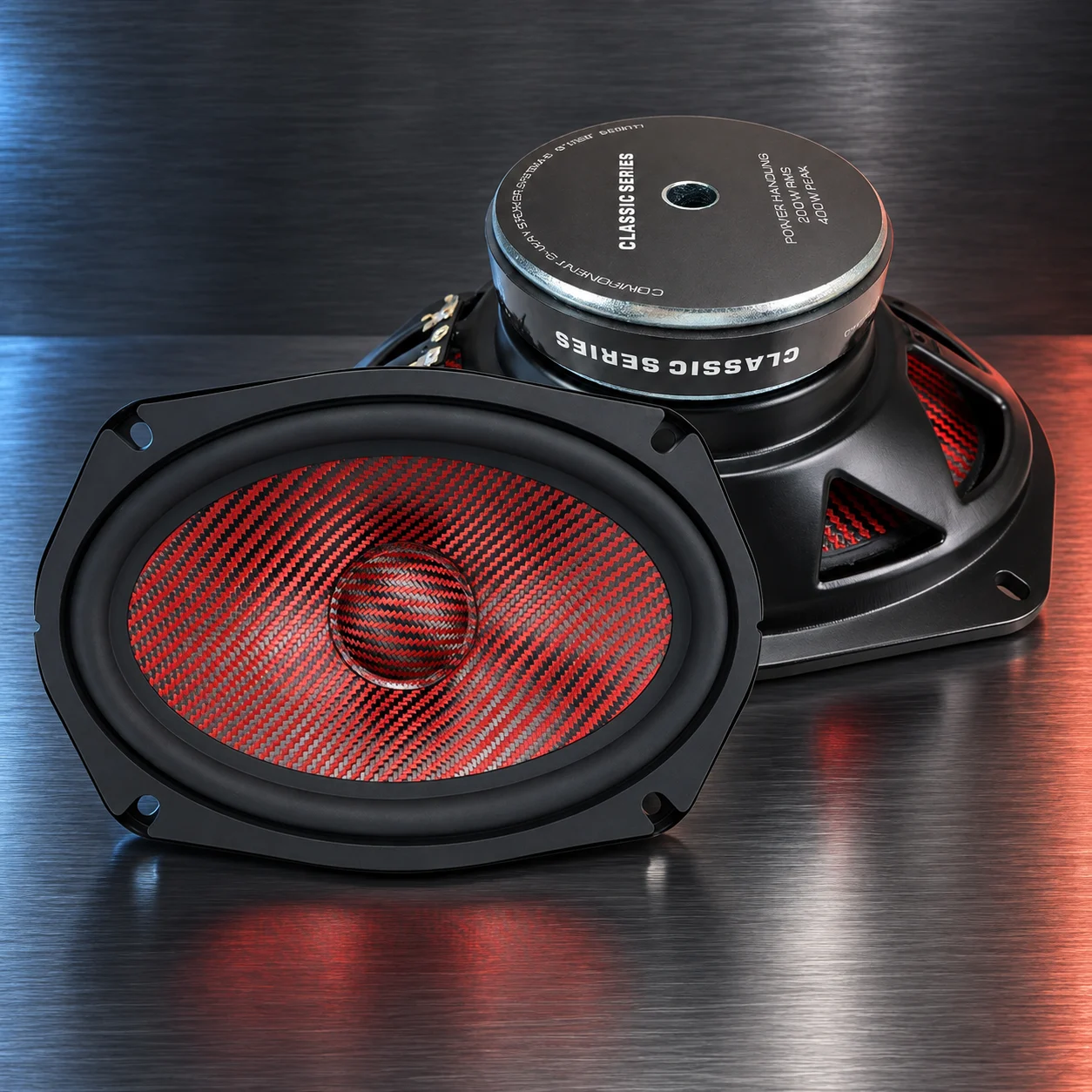

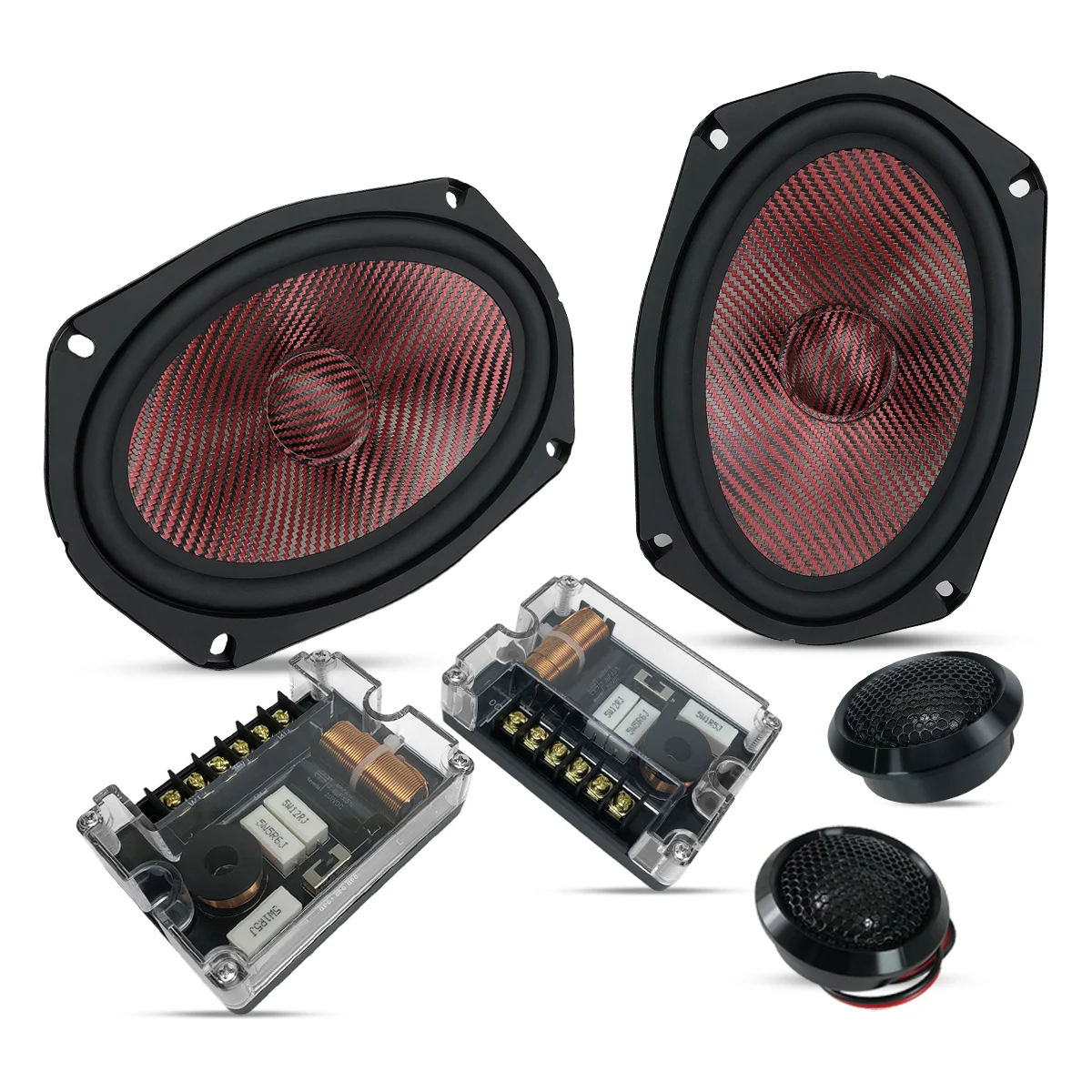

ZM-C69CR
Carbon-fiber woofer, separate silk-diaphragm tweeter and passive crossover for a complete component system.
VERIFIED TECHNICAL DATA
Model-Specific Specifications.
Shared construction data and model-specific power, magnet and packaging values are kept clearly separated.
MODEL
ZM-C65CR
6.5-inch 2-way component| RMS power | 80 W × 2 |
|---|---|
| System | 2-way component |
| Cone | Carbon fiber |
| Woofer basket | Stamped steel |
| Sensitivity | 90 dB |
| Impedance | 4 Ω |
| Tweeter | 25 mm silk diaphragm / neodymium |
| Frequency response | 43 Hz – 28 kHz |
| PMPO power | 160 W × 2 |
| Woofer magnet | 80 mm Y35 ferrite |
| Color box | 41 × 27 × 11 cm |
MODEL
ZM-C69CR
6×9-inch 2-way component| RMS power | 100 W × 2 |
|---|---|
| System | 2-way component |
| Cone | Carbon fiber |
| Woofer basket | Stamped steel |
| Sensitivity | 90 dB |
| Impedance | 4 Ω |
| Tweeter | 25 mm silk diaphragm / neodymium |
| Frequency response | 43 Hz – 28 kHz |
| PMPO power | 200 W × 2 |
| Woofer magnet | 100 mm Y35 ferrite |
| Color box | 41 × 35 × 12 cm |
PRODUCT DETAILS
Distinct Views Without Repeating the Same Image.
Dedicated product angles keep the full component visible and make key system parts easy to review.
PRODUCT & BRAND DEVELOPMENT
Build the Series for Your Channel.
Review the selected format, brand presentation, packaging direction and project requirements before sampling.
Product selection
Choose the 6.5-inch, 6×9-inch or coordinated series plan.
Brand customization
Review approved identity and appearance requirements.
Packaging customization
Align retail or distribution packaging with your market.
Customer service
Coordinate samples, specifications and order preparation.
ENGINEERING, MANUFACTURING & QUALITY
Project Support Beyond the Product.
ZEMING supports product review, assembly coordination, quality inspection, packaging preparation and OEM / ODM discussion.
START YOUR PROJECT
Choose ZM-C65CR, ZM-C69CR or Both.
Share your target market, quantity, branding and packaging requirements with our OEM / ODM team.
